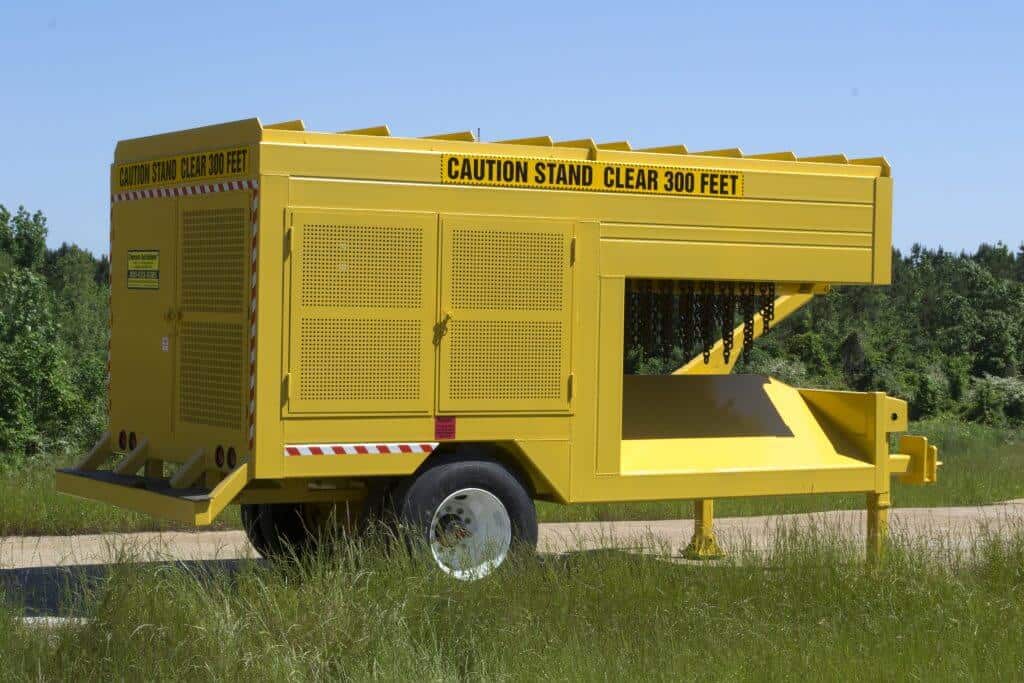

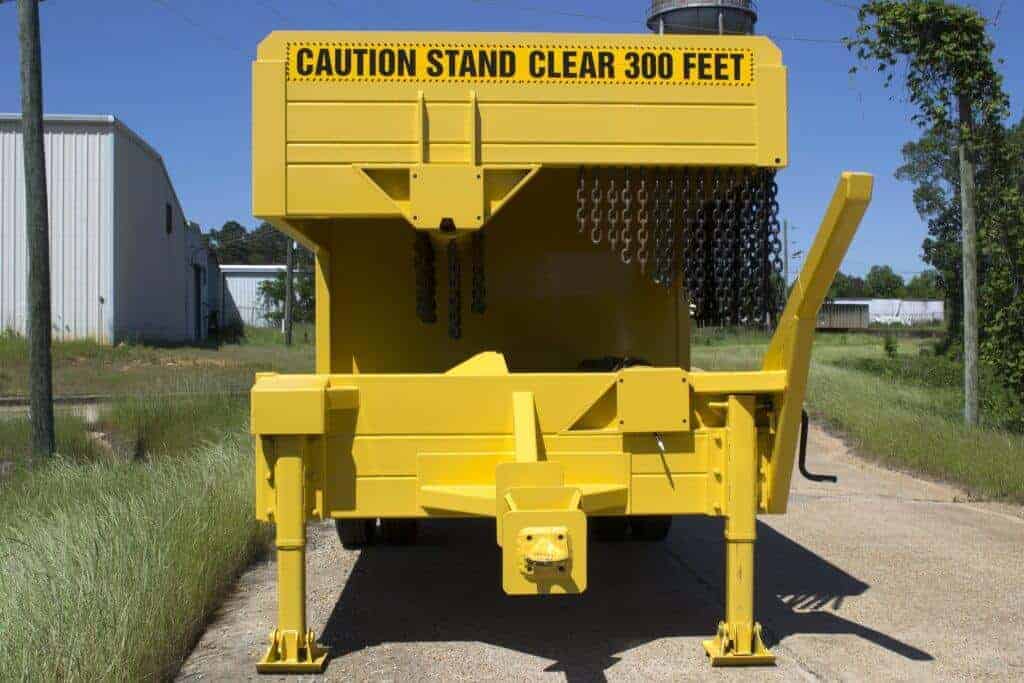

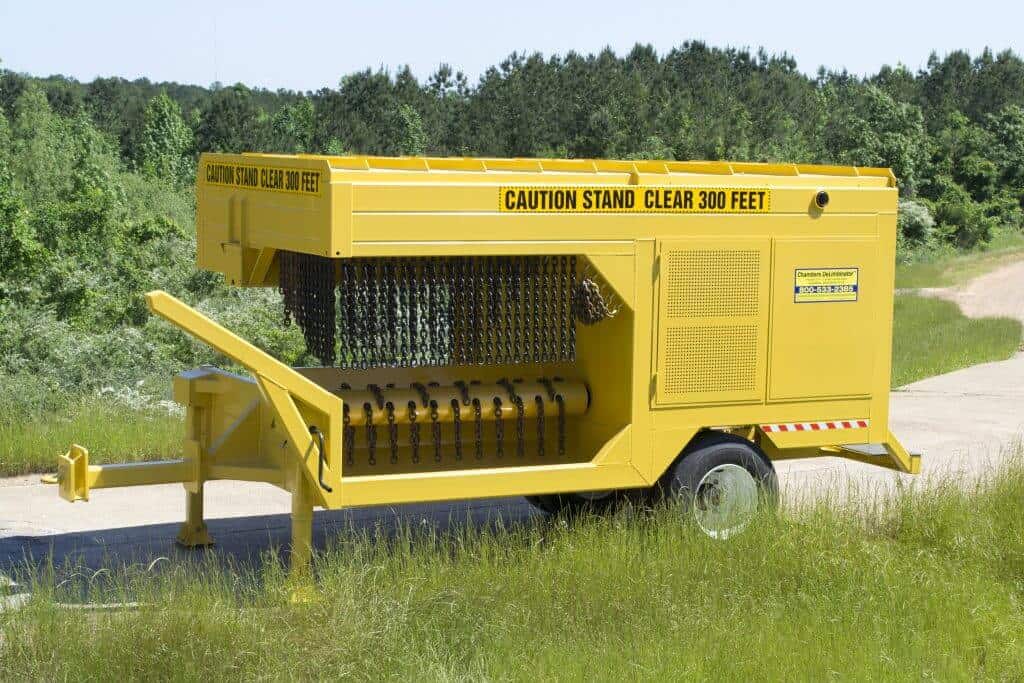

The original Delimbinator. The pintle hitch version is compact in size and towable.
The original Chambers Delimbinator. This is the version of the Chambers Delimbinator that is compact in size and requires less space on the landing. This Delimbinator is equipped with a towing package and a pintle hitch for transporting the unit.
| Size | 16' (long) x 8'8" (wide) x 10'4" (high) |
|---|---|
| Weight | Approximately 25,000 lbs. |
| Flail Area | 7'8" deep x 8'8" wide |
| Drum Length | 88" top and bottom drums. |
| Drum Diameter | 10 3/4" outside diameter |
| Drum Shaft | 3 1/2' C.R.S. shaft locked in drums with taper locks and keys. No Weld |
| Feed Opening | 27" |
| Flail Chains | 5/8" hardened short length chain; 44-chain top, 44-chain bottom |
| Bearing | Heavy duty flange, self aligning, expansion type front bearing and heavy duty piloted flange back bearing. |
| Engine | John Deere 6068. 250Hp 6.8 Liter turbocharged tier 3 diesel engine. John deere warranty and service. Electronic control panel has high temperature and low oil shutoff. |
| Engine Cooling | Custom designed oversized cooling system. The system features a bolted (not brazed) tank design preventing leaks. Radiator is vibration isolated. |
| Drive | 5 Groove Power Band drive for each drum, engaged by 14 inch Kraft clutch PTO drive. No gear boxes or hydraulics on drive or feed works. |
| Doors | Belt guards and curtain chains provided for safety. |
| Trailering | Machine is supported by one heavy duty axle with dual wheels and 11.00 x 22.5 tires. The trailering package includes fifth wheel king pin hitch, air brake hook-up, reserve tank, lights, and reflective tape. |
